ARUBA CX 6300 SWITCH SERIES

This modern, flexible, and intelligent stackable switch series is ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments.

Versatile switches ready for cloud, mobile, and IoT

Created for game-changing operational efficiency with built-in security and resiliency, the CX 6300 switches provide the foundation for high-performance networks.

Layer 3 switching

Stackable switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.

Scalable, always on performance

High-performance 880 Gbps system switching capacity, 660 MPPS of system throughput, and redundant, hot swappable power supplies and fans.

Speed and power for users and IoT

Convenient built-in wire speed 10/25/50GbE uplinks, high-density SFP+, and choice of HPE Smart Rate multi-gig with 90W PoE on every port.

Scalable growth made simple

Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management.

Top-of-rack solution

Power-to-port switch bundle with back-to-front airflow, ideal for data center 1GbE ToR and OOBM deployments.

Flexible management

The fully programmable CX 6300 series supports a choice of management including cloud-based and on-prem Central, CLI, switch Web GUI, and programmability with AOS-CX operating system and REST APIs.

PRODUCT OVERVIEW

The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer. A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Specifications

  • Performance
    • System Switching Capacity: 880 Gbps
    • System Throughput Capacity: 660 Mpps
    • Stack Size: 10 member using 10G SFP ports
    • Max. Stacking Distance: Up to 10 kms with long range transceivers
    • Stacking Bandwidth: 200 Gbps
    Models
    • Aruba 6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class 6 PoE and 2p 50G and 2p 25G Switch (R8S89A)
      • 24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.26 Kg (11.60 lbs)

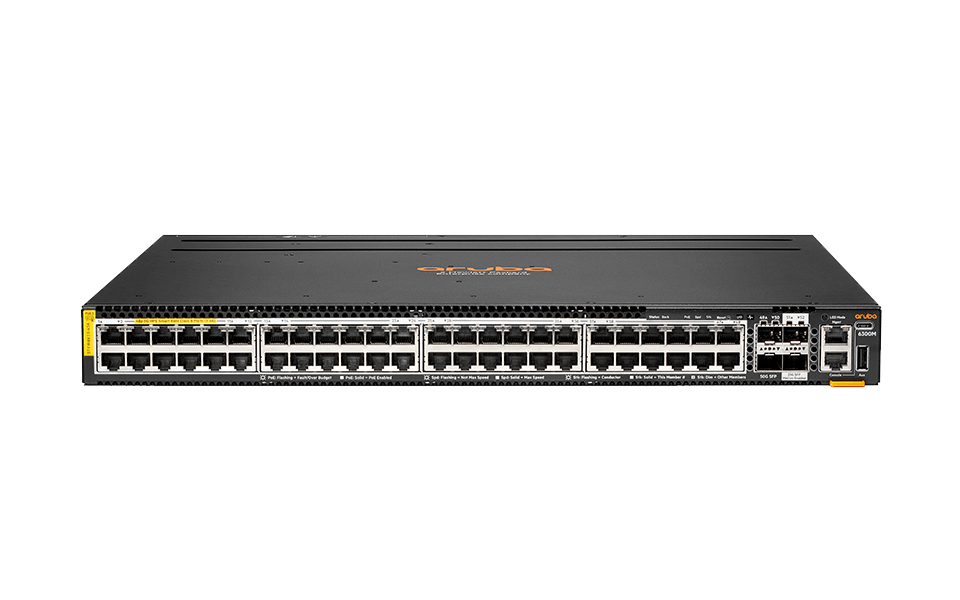

    • Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A)
      • 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
      • 2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.48 Kg (12.08 lbs)

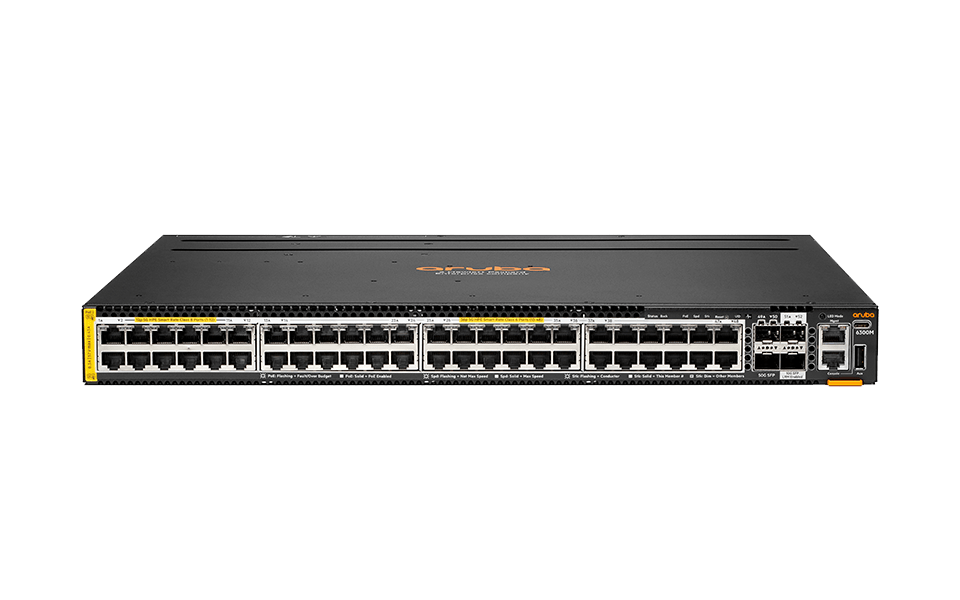

    • Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)
      • 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and Class 6 POE ports supporting up to 60W per port (on ports 13-48)
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 1/10G SFP ports (LRM + MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.47 Kg (12.06 lbs)

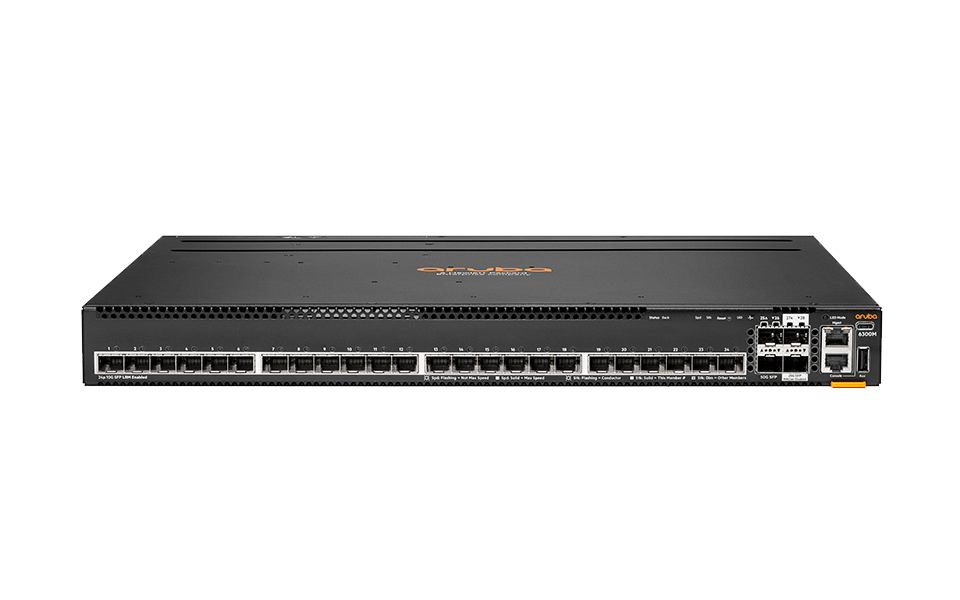

    • Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch (R8S92A)
      • 24x 1G/10G SFP+ ports (LRM + MACSEC)
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 4.85 Kg (10.70 lbs)
    • Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
      • 24x 1G/10G SFP+ ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.8 kg (12.78 lbs)
    • Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
      • 48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Delivers up to 2880W of Class 6 PoE Power
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 6.71 kg (14.8 lbs)
    • Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL660A)
      • 24x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Delivers up to 1440W of Class 6 PoE Power
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 6.06 (13.36 lbs)
    • Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A)
      • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • 48 ports of full redundancy PoE+ Power with two 1600W PSUs
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.72 kg (12.61 lbs)
    • Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
      • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • 24 ports of full redundancy PoE+ Power with two 1600W PSUs
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.55 kg (12.23 lbs)
    • Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.51 kg (12.14 lbs)
    • Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A)
      • 24x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)/li>
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.43 kg (11.97 lbs)
    • Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots and comes with 1 Power-to-Port power supply (JL760A) installed. Additional Power-to-Port power supply can be ordered separately. Supports JL760A power-supply only
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot. Supports JL761A Pwr2Prt Fan Tray only
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 1 PSU 5.7 kg (12.5 lbs); 2 PSU 6.27 kg(13.8 lbs)

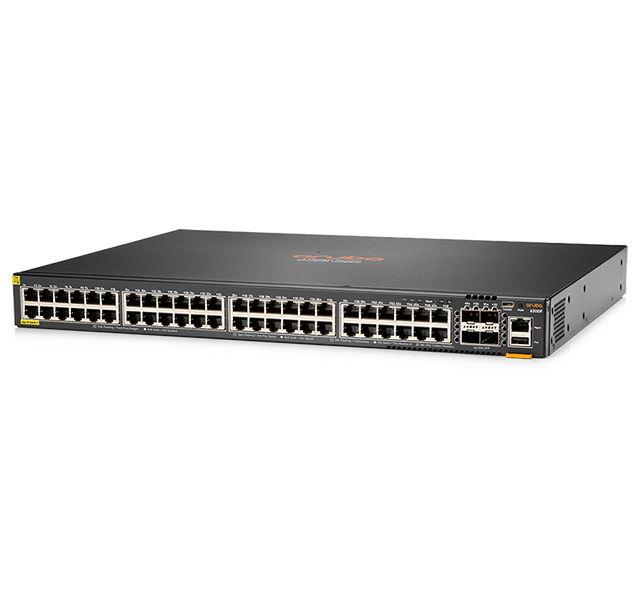

    • Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)
      • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (950W), fixed fans
      • Up to 720W of PoE+
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 5.10 kg (11.24 lbs)
    • Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
      • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (950W), fixed fans
      • Up to 370W of PoE+
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.95 kg (10.91 lbs)
    • Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (200W), fixed fans
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.46 kg (9.83 lbs)
    • Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A)
      • 24x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (200W), fixed fans
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.36 kg (9.61 lbs)

  • Management ports
    • 1x USB-C Console Port
    • 1x OOBM port
    • 1x USB Type A Host port
    • 1x Bluetooth dongle for use with Aruba CX Mobile App
    POE power
    • Up to 2880W of Class 8: R8S90A
    • Up to 2880W of Class 6 and Class 8: R8S91A
    • Up to 2880W of Class 6: JL659A, R8S89A
    • Up to 1440W of Class 6: JL660A
    • Up to 1440W of Class 4: JL661A
    • Up to 720W of Class 4: JL662A
    • 720W of Class 4: JL665A
    • 370W of Class 4: JL666A
    Mounting
    • Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
    Power supplies and fan tray
    • Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
    • Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
    • Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
    • Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
    • Aruba X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
    • Aruba 6300M 250W 36-72VDC PSU (JL757A)
    • Aruba 6300M 1050W 36-72VDC (JL758A)
    • Aruba 6300M Fan Tray (JL669A)
    • Aruba 6300M Power-to-Port Fan Tray (JL761A)




OVERVIEW

PRODUCT OVERVIEW

The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer. A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

SPESIFIKASI

Specifications

  • Performance
    • System Switching Capacity: 880 Gbps
    • System Throughput Capacity: 660 Mpps
    • Stack Size: 10 member using 10G SFP ports
    • Max. Stacking Distance: Up to 10 kms with long range transceivers
    • Stacking Bandwidth: 200 Gbps
    Models
    • Aruba 6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class 6 PoE and 2p 50G and 2p 25G Switch (R8S89A)
      • 24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.26 Kg (11.60 lbs)
    • Aruba 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A)
      • 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
      • 2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.48 Kg (12.08 lbs)
    • Aruba 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)
      • 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and Class 6 POE ports supporting up to 60W per port (on ports 13-48)
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 1/10G SFP ports (LRM + MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.47 Kg (12.06 lbs)
    • Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch (R8S92A)
      • 24x 1G/10G SFP+ ports (LRM + MACSEC)
      • 2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2x 10G/25G SFP ports (MACSEC)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 4.85 Kg (10.70 lbs)
    • Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
      • 24x 1G/10G SFP+ ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.8 kg (12.78 lbs)
    • Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
      • 48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Delivers up to 2880W of Class 6 PoE Power
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 6.71 kg (14.8 lbs)
    • Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL660A)
      • 24x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • Delivers up to 1440W of Class 6 PoE Power
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 6.06 (13.36 lbs)
    • Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A)
      • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • 48 ports of full redundancy PoE+ Power with two 1600W PSUs
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.72 kg (12.61 lbs)
    • Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
      • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • 24 ports of full redundancy PoE+ Power with two 1600W PSUs
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.55 kg (12.23 lbs)
    • Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.51 kg (12.14 lbs)
    • Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A)
      • 24x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)/li>
      • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      • One field-replaceable, hot-swappable fan tray (included), one empty slot
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 5.43 kg (11.97 lbs)
    • Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • 2 field-replaceable, hot-swappable power supply slots and comes with 1 Power-to-Port power supply (JL760A) installed. Additional Power-to-Port power supply can be ordered separately. Supports JL760A power-supply only
      • Two field-replaceable, hot-swappable fan trays (included), no empty slot. Supports JL761A Pwr2Prt Fan Tray only
      • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      • Weight: 1 PSU 5.7 kg (12.5 lbs); 2 PSU 6.27 kg(13.8 lbs)
    • Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)
      • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (950W), fixed fans
      • Up to 720W of PoE+
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 5.10 kg (11.24 lbs)
    • Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
      • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (950W), fixed fans
      • Up to 370W of PoE+
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.95 kg (10.91 lbs)
    • Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A)
      • 48x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (200W), fixed fans
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.46 kg (9.83 lbs)
    • Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A)
      • 24x ports 10/100/1000BaseT ports
      • 4x 1/10/25G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      • Internal (fixed) power supply (200W), fixed fans
      • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      • Weight: 4.36 kg (9.61 lbs)

  • Management ports
    • 1x USB-C Console Port
    • 1x OOBM port
    • 1x USB Type A Host port
    • 1x Bluetooth dongle for use with Aruba CX Mobile App
    POE power
    • Up to 2880W of Class 8: R8S90A
    • Up to 2880W of Class 6 and Class 8: R8S91A
    • Up to 2880W of Class 6: JL659A, R8S89A
    • Up to 1440W of Class 6: JL660A
    • Up to 1440W of Class 4: JL661A
    • Up to 720W of Class 4: JL662A
    • 720W of Class 4: JL665A
    • 370W of Class 4: JL666A
    Mounting
    • Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
    Power supplies and fan tray
    • Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
    • Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
    • Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
    • Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
    • Aruba X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
    • Aruba 6300M 250W 36-72VDC PSU (JL757A)
    • Aruba 6300M 1050W 36-72VDC (JL758A)
    • Aruba 6300M Fan Tray (JL669A)
    • Aruba 6300M Power-to-Port Fan Tray (JL761A)




GALLERY
