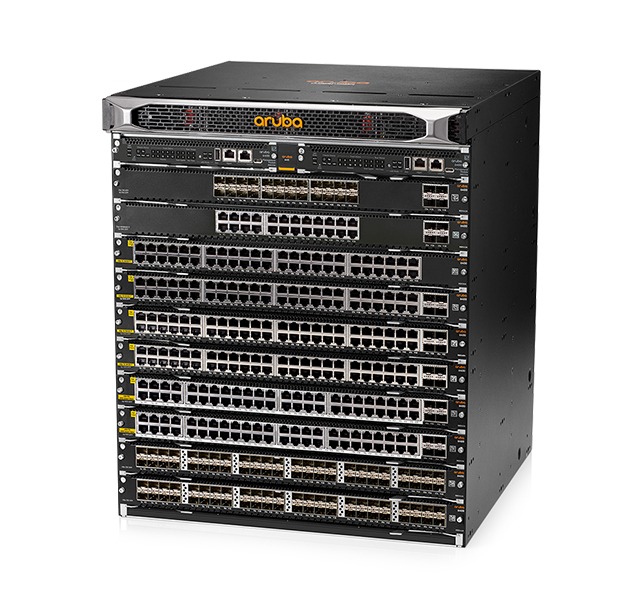

ARUBA CX 6400 SWITCH SERIES

A modern, intelligent family of high-availability switches ideal for use from edge access to core and into the data center, including spine-leaf architectures and EVPN-VXLAN fabrics.

Powerful, fast, and always-on

For demanding campus and data center networks, the CX 6400 provides always-on performance you can depend on.

Superior performance

High-performance switching with up to 28Tbps with 11.4Bpps.

Scale, performance, and flexibility

Powerful modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS.

Versatile, high-bandwidth connectivity

Full density HPE Smart Rate (1/2.5/5GbE) multigigabit, 60W PoE and SFP+ modules.

Future-proof speed

High-speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE. 50GbE speed with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release.


PRODUCT OVERVIEW

The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game‑changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the 6400 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Switching Extension (VSX) allows for high availability, and also enables non-disruptive fast upgrades and simplified management. This flexible series offers powerful connectivity options in a 5 or 10 slot compact chassis with non-blocking 2.8Tb fabric per slot and high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Line rate interfaces include 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE ports. High speed interconnect and Aruba VSX using 50G DACs.Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

Specifications

  • Performance
    • System Switching Capacity: up to 28 Tbps
    • System Throughput Capacity: up to 11.4 Bpps
    Models
    • Aruba CX 6405 Switch (R0X26A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 5 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 29.3 kg (64.7 lbs)

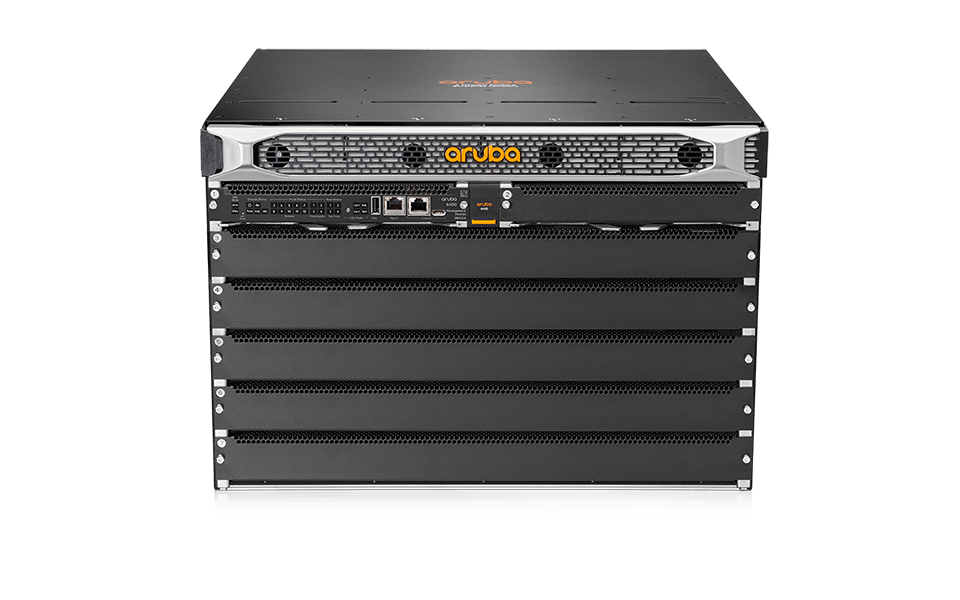

    • Aruba 6405 v2 Switch (R0X26C)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 5 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 29.3 kg (64.7 lbs)

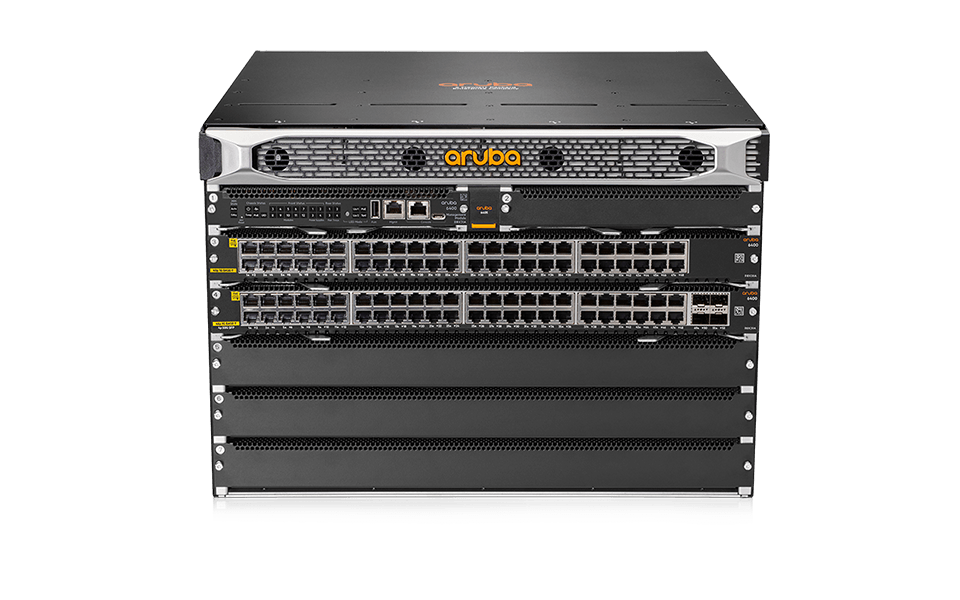

    • Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle (R0X29A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 3 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 34.1 kg (75.2 lbs)

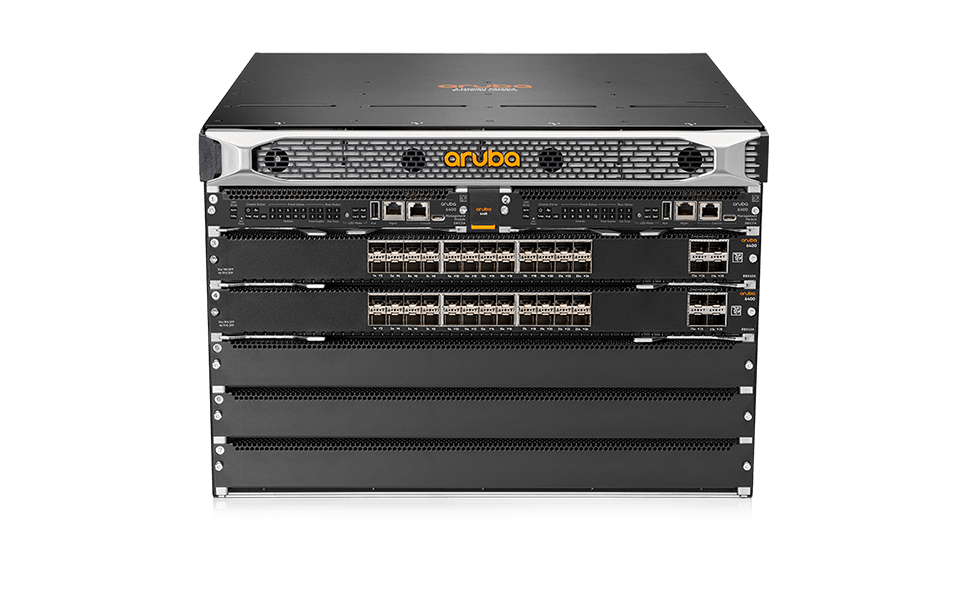

    • Aruba CX 6405 48SFP+ 8SFP56 Switch bundle (R0X30A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 2x R0X43A Line Card for 48x 1G/10G SFP+ ports and 8x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 3 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 34.0 kg (75 lbs)
    • Aruba CX 6410 Switch (R0X27A)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 10 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 53.5 kg (118.2 lbs)
    • Aruba 6410 v2 Switch (R0X27C)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 10 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 53.5 kg (118.2 lbs)
    • Aruba CX 6410 96G CLS4 PoE 4SFP56 Switch bundle (JL741A)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 8 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) x 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 58.3 kg (128.8 lbs)
    Management Ports
    • 1x USB-C Console Port
    • 1x OOBM port
    • 1x USB Type A Host port
    • 1x Bluetooth dongle for use with Aruba CX Mobile App
    POE Power
    • Up to 146 ports of 60W IEEE 802.3bt High Power PoE
    Mounting
    • Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately.




OVERVIEW

PRODUCT OVERVIEW

The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game‑changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the 6400 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Switching Extension (VSX) allows for high availability, and also enables non-disruptive fast upgrades and simplified management. This flexible series offers powerful connectivity options in a 5 or 10 slot compact chassis with non-blocking 2.8Tb fabric per slot and high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Line rate interfaces include 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE ports. High speed interconnect and Aruba VSX using 50G DACs.Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

SPESIFIKASI

Specifications

  • Performance
    • System Switching Capacity: up to 28 Tbps
    • System Throughput Capacity: up to 11.4 Bpps
    Models
    • Aruba CX 6405 Switch (R0X26A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 5 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 29.3 kg (64.7 lbs)
    • Aruba 6405 v2 Switch (R0X26C)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 5 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 29.3 kg (64.7 lbs)
    • Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle (R0X29A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 3 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 34.1 kg (75.2 lbs)
    • Aruba CX 6405 48SFP+ 8SFP56 Switch bundle (R0X30A)
      • 1x 6405 Chassis Switch (R0X24A)
      • 1x Management Module (R0X31A)
      • 2x Fan Trays (R0X32A)
      • 2x R0X43A Line Card for 48x 1G/10G SFP+ ports and 8x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 3 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      • Weight: 34.0 kg (75 lbs)
    • Aruba CX 6410 Switch (R0X27A)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 10 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 53.5 kg (118.2 lbs)
    • Aruba 6410 v2 Switch (R0X27C)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 10 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 53.5 kg (118.2 lbs)
    • Aruba CX 6410 96G CLS4 PoE 4SFP56 Switch bundle (JL741A)
      • 1x 6410 Chassis Switch (R0X25A)
      • 1x Management Module (R0X31A)
      • 4x Fan Trays (R0X32A)
      • 1x R0X38B Line Card and 1x R0X39B Line Card for 96x 10/100/1000Base-T PoE+ ports supporting up to 30W per port and 4x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
      • 8 open module slots
      • Power supply units ordered separately
      • Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) x 44.85 cm (20.8" x 17.5" x 17.7")
      • Weight: 58.3 kg (128.8 lbs)
    Management Ports
    • 1x USB-C Console Port
    • 1x OOBM port
    • 1x USB Type A Host port
    • 1x Bluetooth dongle for use with Aruba CX Mobile App
    POE Power
    • Up to 146 ports of 60W IEEE 802.3bt High Power PoE
    Mounting
    • Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately.
