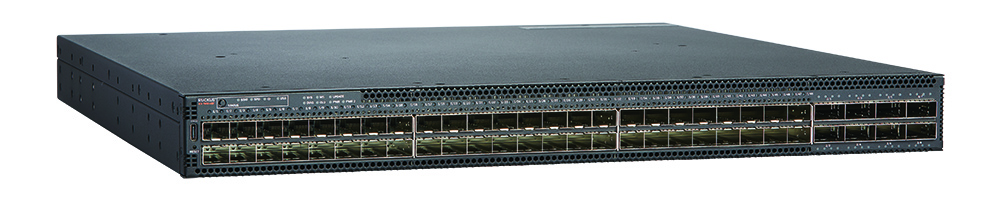

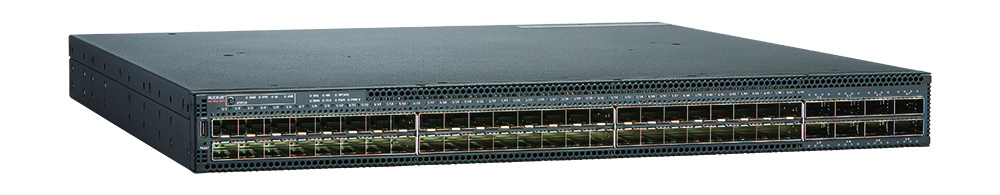

ICX7850 | RUCKUS ICX 7850 SWITCHES
High performance core switches for next generation 100G campus
New user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth. The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multigigabit at the access and, driving the need for faster networks at the aggregation and core. Workgroups and data center servers are migrating from 1GbE connectivity to 10GbE Copper or 25GbE Fiber with 100GbE uplinks to keep up with application demands.
Features and Benefits
Kicking-off the next stage in the fixed form factor revolution:
Superior Scalability: Up 76.8 Tbps of combined switching capacity and 384x 100GbE or 576x 10/25 GbE ports per 12 units’ stack supports the most demanding enterprise environments.
Maximum Flexibility: Network Core connectivity and switching capacity can be distributed wherever it is needed. Does not need to be co-located in a single wiring closet like a traditional chassis.
Advanced Security: 256 bit MACsec delivers maximum data privacy
Pay as you grow: Cost effective deployment model of fixed form factor switches at the network core
- Industry-leading 40/100 Gbps Ethernet port density and flexibility

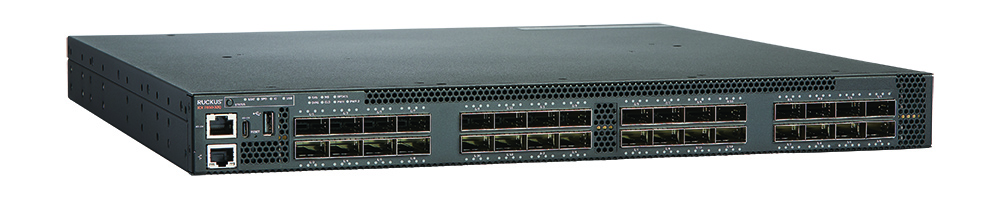

- Up to 32x100 GbE or 128x25 GbE ports per unit
- Up to 9.6 Tbps of aggregated stacking bandwidth

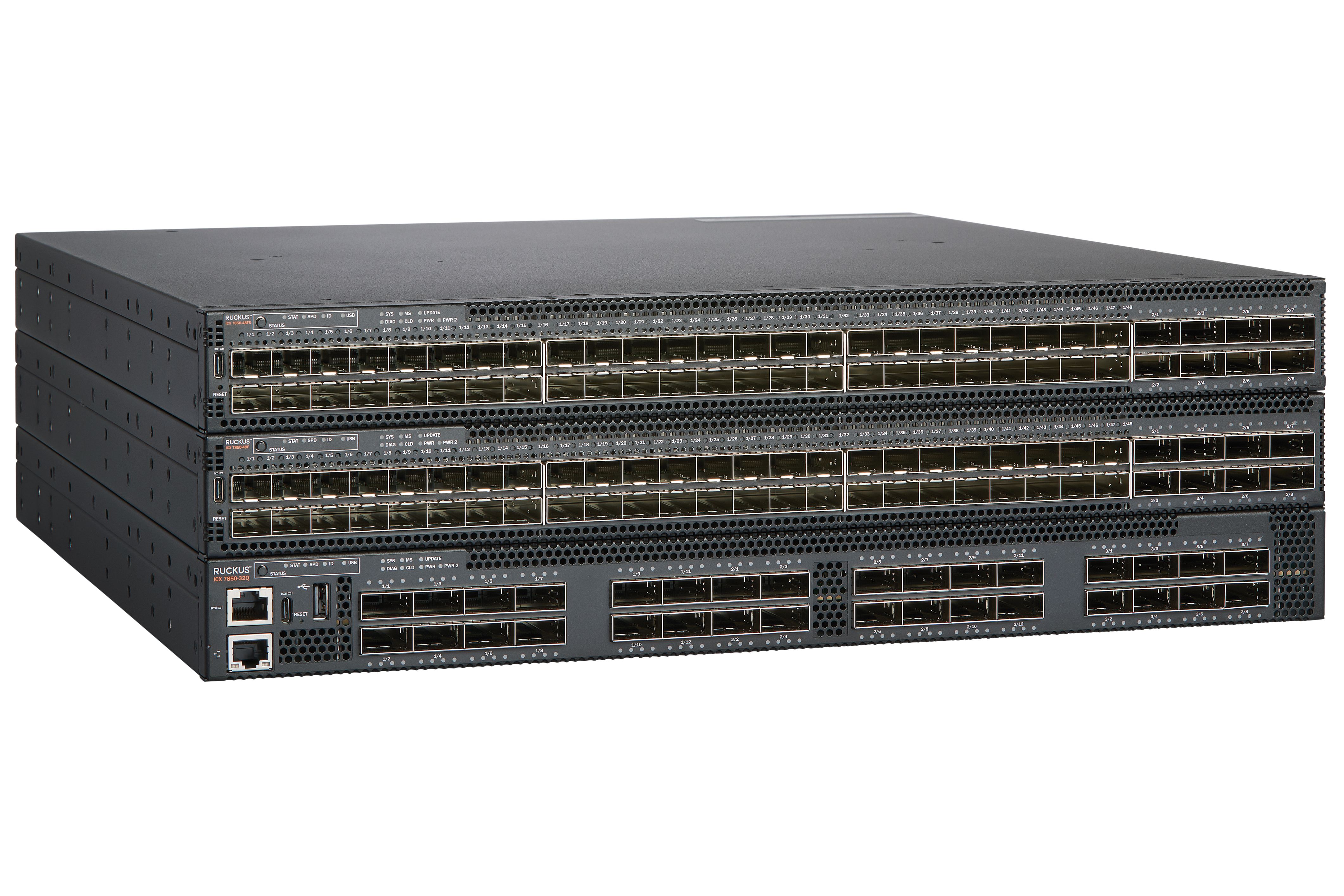

- Stacks up to 12 units with up to 10km between stacked switches
- 8 full-duplex 100 Gbps stacking ports per switch
- Software updates without downtime with In-Service Software Upgrades (ISSU)
- Instantaneous hitless failover

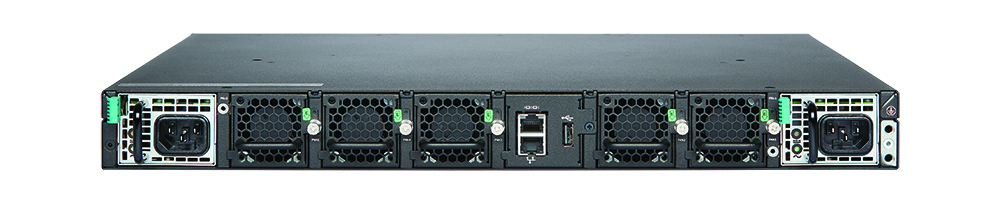

- Redundant power supplies with hot-swappable, and load-sharing capabilities
- Flexible distributed chassis stacking architecture
- Start small and add capacity via stacking as needs grow
- 1U form factor saves rack space and power in wiring closets
- Works seamlessly with RUCKUS Wi-Fi access points
- RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 6400 Gb/s |
| 1 GbE SFP Ports, quantity, maximum | 48 |
| 10 GbE SFP+ Ports, quantity, maximum | 128 |
| 25 GbE SFP28 Ports, quantity, maximum | 128 |
| 40 GbE QSFP Ports, quantity, maximum | 32 |
| 100 GbE QSFP28 Ports, quantity, maximum | 32 |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 9600 Gb/s |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | Yes |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | Yes |
